Description

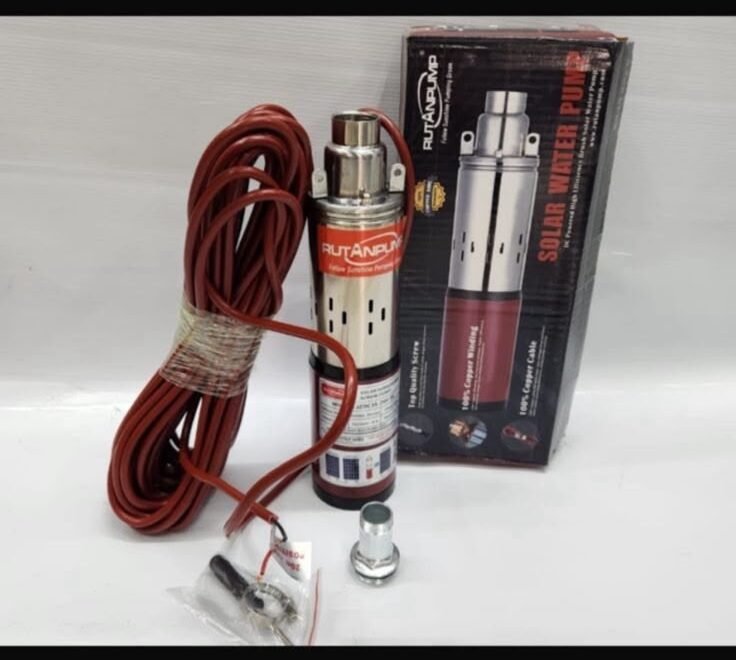

The Rutan 48V primarily refers to the high-lift 48V variant of the Rutan Solar Submersible Water Pump (commonly available in 400W and 750W high-head configurations).
Key Technical Specifications
| Feature / Spec | Specification Details |
| Operating Voltage | 48V DC |
| Power Output | 400W (approx. 0.5 HP) to 750W (approx. 1.0 HP) models |
| Max Head / Lift | 50 meters – 80 meters (depending on specific pump rating) |
| Max Flow Rate | Approx. 1.5 – 3.0 m³/h (1,500 – 3,000 L/h) |
| Motor Type | Brushless DC (BLDC) motor with 100% copper winding |
| Pump Mechanism | Helical Screw / Stainless steel impeller |
| Controller | Built-in smart MPPT (Maximum Power Point Tracking) |
| Pump Body Construction | Anti-corrosion Stainless Steel |
| Outlet Diameter | 0.75″ to 1.0″ (Inch) |
Primary Features & Applications
-
Direct Solar Connection: Includes an integrated controller that allows direct connection to solar panel arrays without needing external inverters or battery banks.
-
Dry-Run Capability: Built with screw/impeller mechanisms designed to handle low-water conditions without immediate damage.
-
Common Uses: Borehole water extraction, livestock watering, drip irrigation, and domestic off-grid water supply.
