Description

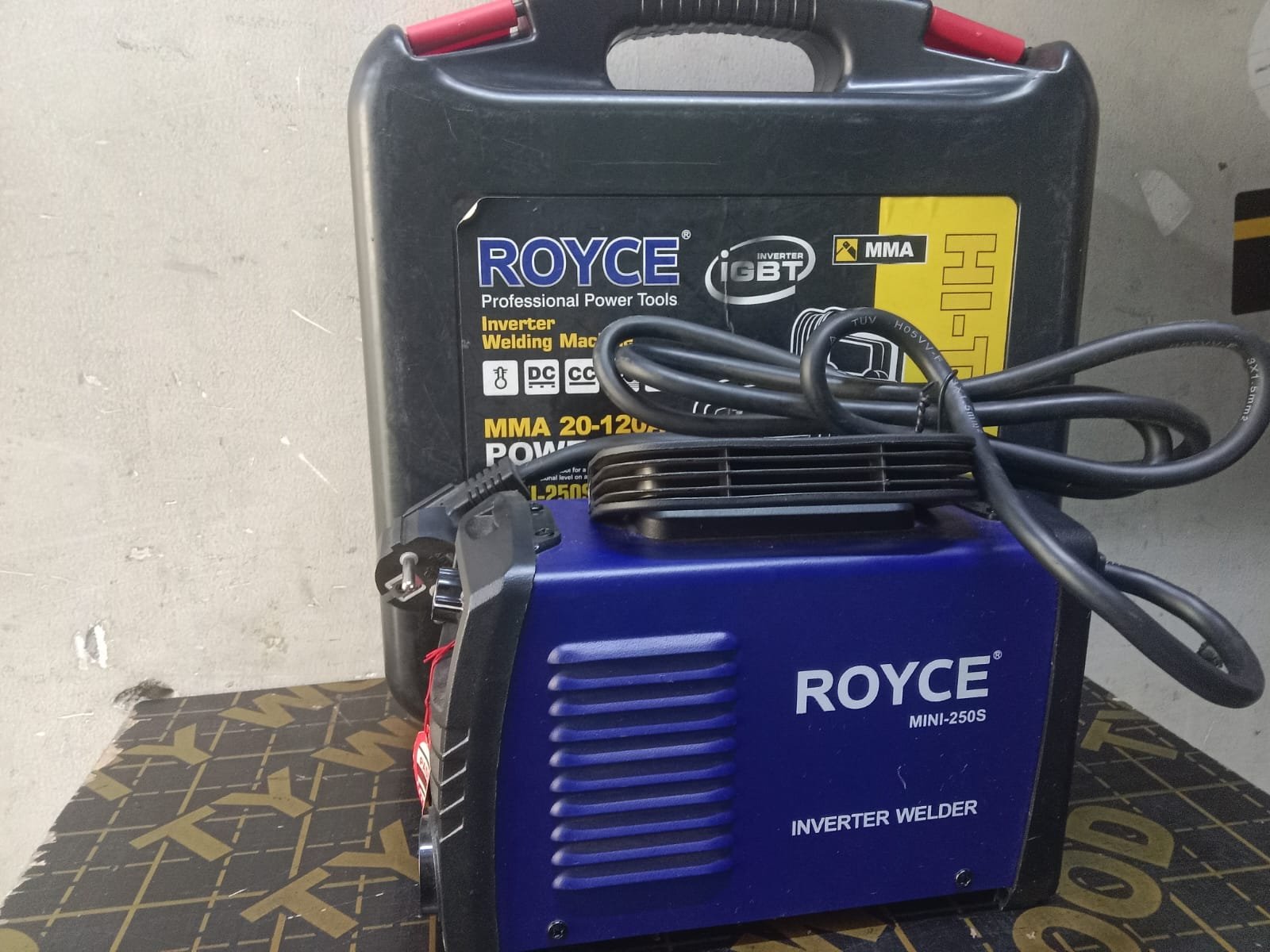

The Royce MMA-250S (Item No. RAC-250 / MMA-250) is a compact, highly portable IGBT inverter stick welding machine. It is designed for light steel fabrication, gate/window grill repairs, agricultural equipment maintenance, and general workshop use.
Technical Specifications
-
Welding Technology: IGBT Inverter with PWM (Pulse Width Modulation) closed-loop control.
-
Input Voltage: Single Phase 220V–230V AC (50/60 Hz).
-
Input Capacity: 6.0 KVA to 8.7 KVA.
-
Output Current Range: 20A to 250A (adjustable via digital display).
-
Supported Electrode Sizes: $1.6\text{ mm}$ to $4.0\text{ mm}$ (up to $5.0\text{ mm}$ for brief light passes).
-
Duty Cycle: 60% at 250A maximum output; 100% at normal continuous working currents.
-
Efficiency: ~85% power efficiency rating.
-
Cooling & Protection: Forced air cooling fan with built-in thermal overload protection.
Key Features
-
Compact & Lightweight: Smaller chassis than the 300S and 400S models, making it very easy to move around job sites or work at heights.
-
Easy Arc Starting: Integrated Hot Start functionality helps trigger the arc instantly without frequent sticking.
-
Stable Power Draw: Low idle energy loss compared to traditional transformer welders, suitable for standard home and light-commercial power outlets.
Standard Accessories Included
-
Electrode Holder with cable & quick dinse connector.
-
Earth Clamp with ground cable.
-
Simple handheld face mask.
-
Chipping hammer & wire brush tool.
